Geometrically Controlled Precision Components

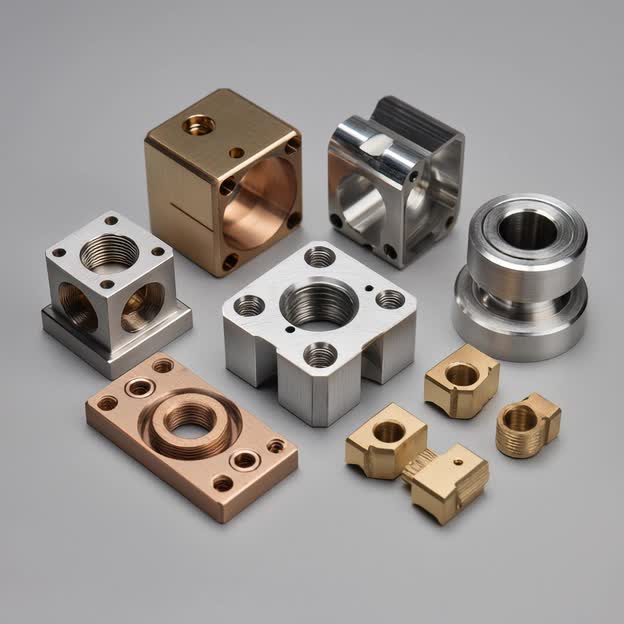

Honmor Geometrically controlled precision components made in China refer to machined parts that geometric characteristics (such as flatness, roundness, position precision and perpendicularity) are strictly controlled during processing which ensures the geometrical parameters of each part comply with predetermined standards. Unlike general precision parts, the core lies in ability of control: through specialized design, precise processing and strict inspection, geometric deviations are controlled in fixed tolerances range to prevent assembly mismatches caused by random errors. At Honmor, we manufacture these components by adapting CNC milling, turning, and grinding equipment combined with geometric tolerance analysis software (such as SolidWorks Simulation). All the raw material such as (stainless steel 316L, aluminum alloy 7075 and titanium alloy TC4) are inspected multiple times to eliminate defects that would affect geometric precision. Honmor is able to provide customized solution that meets the requirements of geometric precision whether the customers require small-batch custom geometric control precision parts for specialized projects or large-volume procurement of mass-produced components, helping customers can purchase precision parts reliably and easily.

Core Technical Advantages

Precise Geometric Control Technology

Honmor use a closed-loop system (design-machining-inspection) for precision components with geometric control. During design period, engineers will use GD&T standards to confirm geometric tolerance and simulate processing path to avoid potential precision deviations. During the processing stage, high-precision CNC machines collaborate with ultra-hard tools to ensure stable cutting. Post-machining, geometric features are inspected using coordinate measuring machines (CMMs), with measurement data fed back to the machining system for real-time optimization. This closed-loop control guarantees controllable, stable, and consistent geometric precision for every component.

Strong Material Adaptability

Geometrically Controlled Precision Components often need to be made of different materials to adapt to various industrial environments (e.g., high temperature, corrosion resistance).Honmor are extremely experienced in processing various materials: for aluminum alloy parts, using high-speed cutting technology to minimize heat deformation and ensure geometric accuracy; For stainless steel components, utilizing low-temperature processing to eliminate internal stresses to avoid geometric deviation caused by next machining. When machining titanium alloy, we use low-speed with high-torque machining method to protect precision from tool wear. This material adaptability makes Honmor is able to meet customers’ customized requirements for precision components across various industries

Efficient Production Management

To shorten delivery cycles for precision geometric control components, Hongmao employs a Manufacturing Execution System (MES) for production management. This system monitors the processing progress of each part in real time, optimizes production cycle, and reduces waiting times. For example, when a customer have an order of 500 sets of precision geometric control gears in urgency, Honmor can dispatch three sets of CNC machines to produce simultaneously and complete the order within 7days (two days higher than industry average level). Such efficient management method ensures customers can receive the goods on time and keep their production schedules.

Technical Parameters

Application Fields

Aerospace Industry

In the field of aerospace equipment (such as aircraft engines, satellite brackets), geometrically controlled precision parts are vital for stable operation. For example, the turbine disk of an aircraft engine requires strict positional tolerance between its mounting holes (≤0.002mm) to avoid vibration during high-speed rotation. Honmor has provided such components for a North American aerospace company, with all parts passing the AS9100 quality certification. The components’ controllable geometric accuracy ensures the aircraft engine can operate safely at 15,000 rpm, winning long-term cooperation from the client.

Medical Device Industry

Medical devices such as surgical robots and MRI components require ultra-high geometric precision to ensure treatment safety. As a precise geometric control part, the guideline of surgical robots must possesses straightness tolerance of less than 0.001 mm to ensure precise and stable operations of robotic arm. Hongmao manufactures these guide rails using medical-grade 316L stainless steel, strictly adhering to ISO 13485 standards.A European medical device manufacturer sources these components from Honmor, and the devices equipped with them have passed the CE certification, being widely used in clinical surgeries.

Automotive High-End Sector

In high-end automotive manufacturing, especially for electric vehicles and luxury car segments, Geometrically Controlled Precision Components are critical for improving performance and safety. Key applications include transmission gears, motor housings, and battery connectors. Honmor had passed the IAFT 16949 automotive quality certification and the transmission gears produced by Honmor have positioning tolerance less than 0.005mm and surface roughness Ra 0.2 um, ensuring smooth shift and reduced noise. For electric vehicle motor housings, using aluminum alloy 5052 via high-speed processing to achieve flatness less than 0.002mm, effectively suppressing operational vibration. One of the typical case is that Honmor collaborate with a leading new energy vehicle company on battery connector components that through strict tolerance control to ensure stable current transmission. Besides, Honmor’s constant temperature and humidity workshop can effectively control heat deformation of automotive components, ensuring the consistent geometric precision throughout.

Procurement and Customization Process

Requirement Communication

The customer contacts Honmor to provide specifications for precision components requiring geometric control, including 3D drawings (annotated with geometric tolerance requirements), material types, and order quantities.Honmor’s engineers analyze the feasibility of customization, put forward suggestions on optimizing geometric tolerance indicators (to balance precision and cost), and communicate with clients until reaching a consensus.

Sample Production & Inspection

The specific solution for customized geometrically controlled precision parts is that Honmor will produce 1-3 samples at first. After sample completion, Honmor conducts a full geometric accuracy test (including flatness, roundness, positional tolerance) and issues a test report. Customers can inspect the samples and if modifications are needs (such as positional tolerance), Honmor will optimizes the machining technology and remake samples until meet clients’ requirements.

Honmor will start mass production once the samples are confirmed, during the manufacturing progress, random inspections are to be conducted every four hours to ensure the geometric precision remains under control. Upon completion, the components will be packaged in anti-static, anti-collision boxes to prevent damage during transportation. Honmor have collaborate with global famous logistic company (such as DHL, FedEx and UPS) for a long time to ensure deliver the goods to the requested address and provides a tracking number for the clients to check the logistic status.

Honmor Service Advantages

Honmor possesses over 15 years of experience in manufacturing precision components with geometric control, backed by a team of more than 30 engineers proficient in geometric tolerance control and precision machining techniques. It offers free technical consultation—clients can consult about geometric tolerance design or material selection before placing an order. For long-term clients, Honmor provides a “one-stop procurement” service, including stock management and regular supply, reducing clients’ procurement costs. Additionally, if components have geometric accuracy issues (non-human factors) within 1 year of use, Honmor provides free replacement or reprocessing to ensure client satisfaction.
