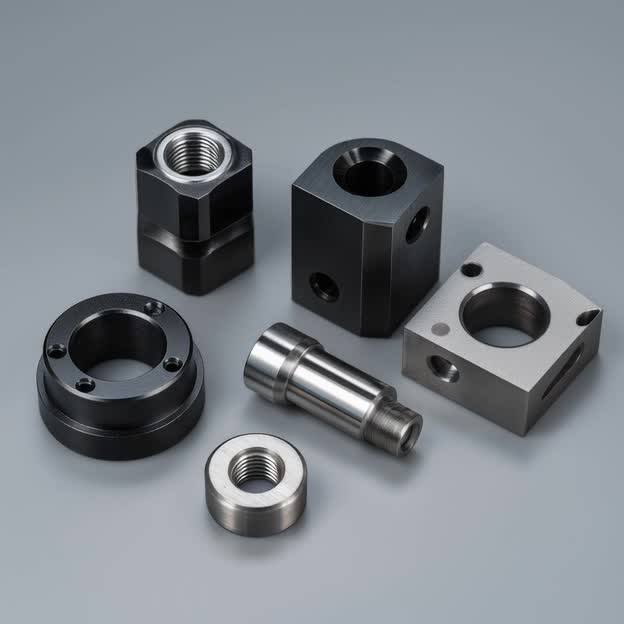

Complex 5 Axis CNC Machining Parts

Product Introduction

Honmor quality Complex 5 Axis CNC Machining Parts refer to mechanical components processed by 5-axis CNC machine tools, which can move along five axes (X, Y, Z linear axes + A, C or B, C rotational axes) simultaneously. This multi-axis linkage allows one-time processing of complex structures like curved surfaces, inclined holes, and irregular contours on the workpiece, avoiding repeated clamping errors. Honmor’s complex 5-axis CNC machining parts are made of superior raw materials (such as: aluminum alloy, stainless steel, titanium alloy, etc), combined with precision cutting tools and intelligent CNC system. Each part must undergoes strict dimensional inspection to ensure that complies with high-precision requirements of industrial applications. Honmor can provide tailored solutions to satisfied customers’ procurement needs whether they need to customize small-batch complex parts or order large-batch of standard products.

Core strength:

High-precision performance

Honmor’s complex 5-axis CNC machined parts achieve a machining tolerance of ±0.005mm, which is significantly surpassing the traditional 3-axis machining. One of the typical advantages of 5-axis CNC machining is that the 5-axis linkage can reduce the cumulative error from multiple clamping, which can ensure consistent accuracy for each part. When customers customize or purchase these parts, Honmor will provide detailed accuracy test reports(using coordinate measuring machines) to ensure that the products comply with the design standards thereby improve the reliability of procurement.

High-activity processing capability

Compared to traditional machining methods, 5-axis machining can shorten the production cycle of complex five-axis CNC machined parts by 30%-50%. Honmor’s 5-axis machining equipment (such as DMG MORI, Haas) can complete multi-face machining in one operation, avoiding time wasted on repositioning the workpiece. At Honmor, we have customized solution for those orders in urgency, the production schedule can be adjusted flexibly to make sure that the goods can be deliver on time, thereby improving production efficiency.

Standout Adaptability for Complex Parts

Honmor’s complex components—machined with five-axis CNC technology—excel at handling a range of precision structures. This includes spiral bevel gears, aerospace engine blades, and curved components for medical devices. What makes this possible is the flexible motion of five-axis machine tools: they can easily machine inclined surfaces, deep holes, and irregular contours. These are exactly the kinds of workpieces that give conventional machine tools a hard time.When customers customize such complex parts, Honmor’s engineers will optimize the machining path based on 3D drawings to ensure that the final products perfectly match the design and meet the customer’s procurement expectation

Technical Parameters

Application Fields

Aerospace Industry

Complex 5 Axis CNC Machining Parts are core components of aircraft engines, landing gear, and avionics. Honmor’s components are capable of withstanding high temperature (up to 600℃) and high pressures, meeting aerospace industry standards (such as AS9100). Many aerospace company choose to purchase customized components from Honmor because they ensure the safety and stability of aircraft operations. For example, Honmor once customized 5-axis machined turbine blades for a European aerospace company, achieving a 100% pass rate in quality inspection.

Automotive industry

In high-performance vehicles and new energy vehicles, complex 5-axis CNC machined parts are widely used in transmission system, chassis brackets, and battery housings. Homor support these sarge-scale order with daily production volume of over 500 pieces. The parts’ high precision ensures smooth cooperation between automotive components, reducing noise and wear. A domestic new energy vehicle manufacturer has long-term ordered Honmor’s 5-axis machined battery brackets, praising their stable quality and on-time delivery.

Medical Device Industry

Medical devices (surgical robots, implantable instruments) require ultra-precise Complex 5 Axis CNC Machining Parts. When customers order customized medical components, Honmor provides material certification and sterile packaging to meet regulatory requirements. A US-based medical device company purchased a customized five-axis machining surgical robot arm from Honmor, which has obtained clinical use approval from the US Food and Drug Administration (FDA).

Procurement and customization process

Requirements communication

Customers contact Honmor, providing 3D drawings, material requirements, and accuracy standards for complex five-axis CNC machined parts. Honmor's engineers will analyze the feasibility of customization and propose optimization suggestions.

Quotation and Confirmation

Based on customer requirements, Honmor provides detailed quotations that include product costs, production lead times, and testing fees. Upon customer confirmation of the quotation, a contract may be signed and an order placed.

Sample production and inspection

For customized complex five-axis CNC machined parts, Honmor will first produce a sample. Customers can test the performance and precision of samples, if modifications are needed, Honmor will adjust the processing solution until samples meet customer’s needs.

Mass production and delivery

Honmor will gets start of mass production once the sample be confirmed, and real-time quality control inspection will be conducted throughout whole production process to ensure consistency of the products. The components will be shipped to requested address when production finished (support global logistic), and after-sale service will be provide simultaneously. Should quality issues arise (due to non-human factors), Honmor offers replacement or rework services.

Honmor’s service strength

Professional engineers team

At Honmor, we possess over 20 engineers and all of them have more than a decade of 5-axis processing experiences, which is helpful to provide end-to-end technical support from design optimization to manufacture capability, ensuring efficient and precise customization of complex 5-axis CNC parts.

With more than 30 sets of high-precision 5-axis CNC machines (including vertical, horizontal, and gantry models), Honmor is able to machining complex 5-axis components with various sizes and types. Equipment undergoes regular maintenance and calibration to guarantee stable and reliable machining performance.

Strict quality control system

Honmor has established a full set of quality control system including raw material inspection, process inspection and finished product inspection. Each complex 5-axis CNC machined parts must undergoes more than 10 inspection items before shipping to ensure the quality.

Global procurement support

Honmor provides multi-language service for global customers (including English, German, Spanish), simplifying the purchase process for complex five-axis CNC machined parts. We have collaborated with famous logistical company such as :DHL and FedEx for a long time, which is helpful for ensuring prompt and safe delivery and minimizing purchase risks.
