Precision Guide Rails

Product Overview:

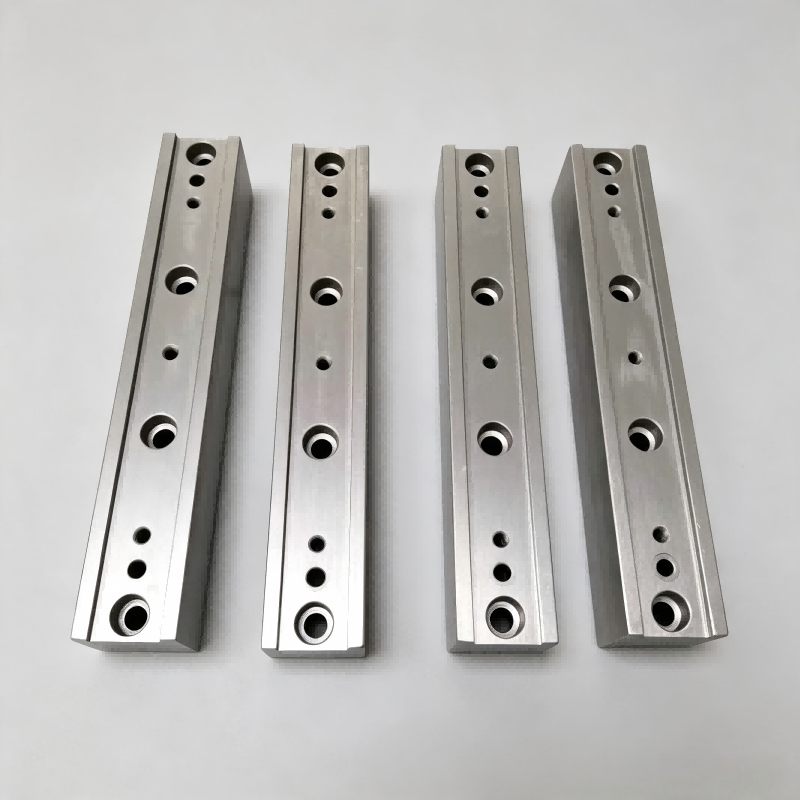

Honmor is a professional customized Precision Guide Rails manufacturer. Our high precision guide rail is specifically designed for automated equipment and is a core modular positioning component widely used in automated production lines. This component features a one-piece, irregularly shaped structure design with fine-threaded mounting holes and equidistant array positioning holes on both sides. Manufactured to strict precision standards, it maintains excellent stability and durability even under high-frequency automated operating environments.

Production Process:

We provide a one-stop service—from raw materials to finished products—ensuring that product dimensions fully comply with blueprint tolerances and performance requirements:

Raw Material Cutting → 5-Axis Machining → Precision Hole Drilling & Threading → Deburring → Inspection (CMM Measurement) → Ultrasonic Cleaning → Final Quality Inspection & Shipment.

Our production Advantages：

l Single-clamp machining: All processes are completed in a single clamping operation, covering irregular structures, curved surfaces, contour machining, precision inclined milling, double-sided machining, and threaded hole machining. This completely avoids cumulative positioning errors caused by repeated workpiece flipping and clamping.

l high precision assurance: Fully meets multiple key precision requirements in drawings, such as 0.02° angular accuracy, 0.01mm perpendicularity, and 0.03mm parallelism. The smooth toolpath design of the 5axis CNC machine effectively avoids tool marks and steps on irregular curved surfaces, thus ensuring excellent machining quality of the Precision Guide Rails.

l High production efficiency and product yield: It greatly simplifies the processing flow, shortens the production cycle, and eliminates scrap losses caused by repeated positioning errors. This makes stable and high-yield production of high-precision automated parts possible.

What services can Honmor offer you?

1. Custom CNC Machining

We offer customized precision CNC milling, turning, drilling, tapping, and grinding services, processing materials including aluminum alloys, stainless steel, brass, engineering plastics, and copper, among other metal/plastic blanks. We can customize production based on customer drawings or samples.

2. Surface Treatment Services

We offer complete post-processing solutions: anodizing, sandblasting, polishing, deburring, zinc/nickel plating, passivation, and heat treatment to improve the corrosion resistance, wear resistance, and appearance quality of parts.

3. Rapid Prototyping, Accepting Small/Large Batch Production

Rapid Prototyping: We can quickly develop samples within 1-5 business days for new product verification;

Flexible Production: We support small-batch trial orders and mass production in industries such as industrial automation, optics, and new energy equipment.

4. Technical Drawing Optimization and Design for Manufacturability (DFM) Services

Our engineering team offers free Design for Manufacturability (DFM) advice: optimizing clients' original CAD drawings to reduce processing costs and shorten production cycles while maintaining dimensional accuracy.

5. One-Stop OEM Customization Services

From raw material procurement, precision machining, surface treatment to dimensional inspection and packaging delivery, we provide global clients with a full-chain OEM/ODM customized manufacturing service.

What type of files do we accept?

We accept different computer drawing file formats:

-STEP (.step) or STP (.stp) formats are ok, but are inferior to the format types above

-IGES (.iges) and IGS (.igs) are ok but inferior to the formats above

-For Autocad users, PDF,DXF/DWG files will work fine

Honmor is highly skilled in manufacturing similar Precision Guide Rails. If you require them, please feel free to send us your drawings, and we will provide you with a free technical quote.
